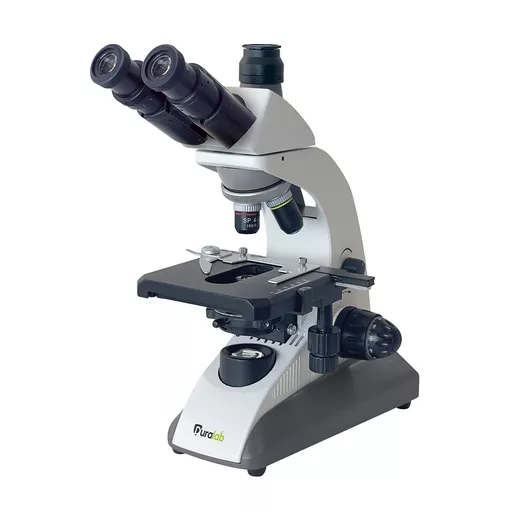

DuraLab DR-530 Advanced Semi Paln Trinocular Microscope

£399.99

The DuraLab DR-530 Advanced Trinocular Microscope with semi-plan objectives epitomizes excellence in educational microscopy, offering a transformative learning experience for students and educators alike. Featuring a trinocular head that rotates 360 degrees, it enables seamless integration of microscope cameras for advanced imaging and documentation. The ergonomic design includes an adjustable interpupillary distance and a 30° angled eyepiece tube, ensuring comfortable viewing conditions during extended sessions.

With a magnification capability of up to 400x, extendable to 1000x with the optional 100x (s) objective, this microscope empowers students to explore intricate details with clarity and precision. Its infinity plan optics and adjustable Abbe condenser with N.A. 1.25 deliver superior optical performance, ideal for detailed analysis and scientific discovery in educational laboratories.

Equipped with a mechanical stage and coaxial coarse and fine focusing mechanism, the DR-530 facilitates precise specimen manipulation and sharp focusing. The durable LED light source, with adjustable intensity and a lifespan of 50,000 hours, ensures consistent illumination for accurate observations.

Backed by a comprehensive 5-year warranty and including essential accessories like a dust cover and tools, the DuraLab DR-530 Advanced Trinocular Microscope is designed to enhance educational outcomes and prepare students for successful careers in scientific research and industry.

Optics System

• Total Magnification: 400x (optional to extend to 1000x with 100x (s) objective – coming soon)
• Head: Trinocular, 360-degree rotatable
• Interpupillary Distance: 50-76mm
• Eyepiece Tube Angle: 30° + 90° vertical tube for microscope camera
• Eyepiece: 2x WF10x/18mm
• Nosepiece Capacity: 4x objectives
• Objectives: 4x, 10x and 40x (s)
• Optic Type: Semi Plan
• Condenser: Adjustable, Abbe N.A. 1.25 with adjustable iris diaphragm

Stage

• Stage Type: Mechanical stage
• Stage Dimensions: 130x125mm
• Slide Securing Mechanism: X-Y axis movable holder for 1 slide

Focussing & Illumination

• Focussing Mechanism: Coaxial coarse and fine
• Stage Limit Stop: In-built plus quick-adjust lock behind focussing knobs
• Light Source: High power LED, 50000hrs (adjustable intensity)

Power & Accessories

• Power Source: 3x rechargeable AA batteries (not included – available separately) with charging port
• Charging Lead: UK power lead supplied that is compatible with the microscope charging port
• Dust Protection: DuraLab printed dust cover included
• Tools: Relevant screws / allen keys included

Warranty: 5 years
